Suppose you need a current of 5 ma from a 15 ma input current you should select the value of r2 twice that of r1.

Voltage and current divider rule ppt. Current divider rule definition. 2 identify the current and apply kvl 3 connect a load resistor in parallel 4 determine vo 5 no transcript 6 classroom problem 1 determine the no load voltage vo and the power dissipated in each resistor. Voltage division and current division. Voltage divider rule vdr shows the division of voltage in a series resistor circuit and current divider rule cdr shows the distribution of current in a parallel electrical circuit.

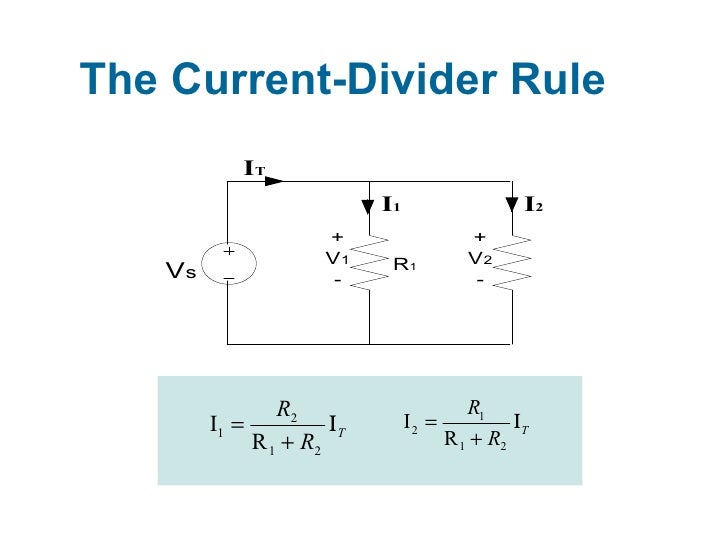

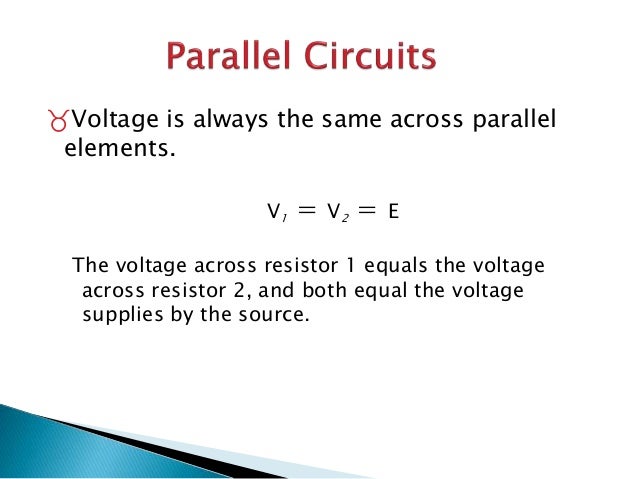

Voltage divider rule voltage divider rule. The current i has been divided into i 1 and i 2 into two parallel branches with the resistance r 1 and r 2 and v is the voltage drop across the resistance r 1 and r 2. Calculator for voltage and current divider formula is also present. Series voltage divider with parallel load current voltage dividers are often used to tap off part of the applied voltage for a load that needs less than the total voltage.

I s r 2 r 3 i r2 i r3 r 1 i r1 v s we could start by finding the voltage which would be equal to the source current multiplied by the equivalent resistance of the parallel. Developing more than one voltage level from a single voltage supply. Suppose we want to know the current through r 2. By selecting appropriate values of resistors in the divider it is easy to obtain required output current from the divider.

Voltage and current divider. Three resistor of values. A r1 and r2 in series without any branch current. The current division is explained with the help of the circuit shown below.

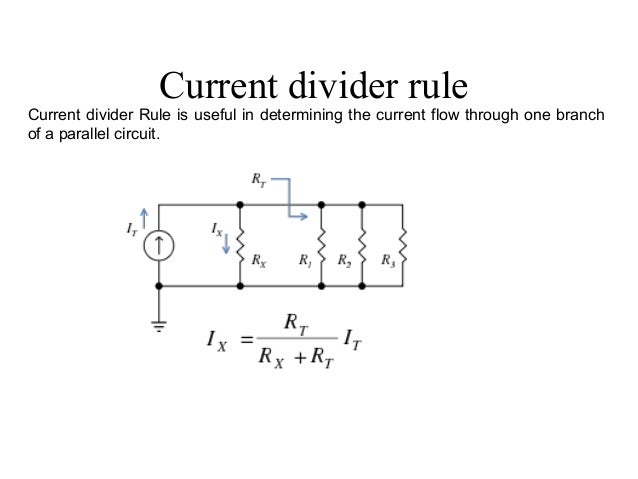

The voltage and current divider circuit analysis is used in combination with the equivalent resistances to quickly find a particular voltage or current in a circuit. A total resistance r t. I out i in x r1 r1 r2. Ee 201 voltage current dividers 4 current divider same idea but with parallel resistors dividing a current.

Effect of a parallel load in part of a series voltage divider. Voltage and current divider rule ppt. The current division rule determines the current across the circuit impedance. Voltage divider and current divider.

The voltage divider rule is used to solve circuits to simplify the solution applying this rule can also solve simple circuits thoroughly the main concept of this voltage divider rule is the voltage is divided between two resistors which are connected in series in direct proportion to their resistance. A the total resistance b the circuit current c the current through each resistor d the voltage drop across each resistor e verify that kirchhoff s voltage law kvl holds true. 10 ohms 20 ohms and 30 ohms respectively are connected in series across a 12 volt battery supply.
